CARROCERÍA PARA SEA-DOO SPARK 2017

CARROCERÍA para Sea-Doo SPARK 2017

(10)  291004646
CENTER BODY

(11)  291003880
OVAL WASHER

(11)  291003880
OVAL WASHER

(11)  291003880
OVAL WASHER

(11)  291003880
OVAL WASHER

(11)  291003880
OVAL WASHER

(11)  291003880
OVAL WASHER

(12)  250000827
SCREW TORX M6 X 50

(12)  250000827
SCREW TORX M6 X 50

(12)  250000827
SCREW TORX M6 X 50

(12)  250000827
SCREW TORX M6 X 50

(12)  250000827
SCREW TORX M6 X 50

(12)  250000827
SCREW TORX M6 X 50

(13)  234062600
FLAT WASHER M6, STAINLESS

(13)  234062600
FLAT WASHER M6, STAINLESS

(13)  234062600
FLAT WASHER M6, STAINLESS

(13)  234062600
FLAT WASHER M6, STAINLESS

(13)  234062600
FLAT WASHER M6, STAINLESS

(13)  234062600
FLAT WASHER M6, STAINLESS

(14)  232561200
ELASTIC STOP NUT M6, BRASS

(14)  232561200
ELASTIC STOP NUT M6, BRASS

(14)  232561200
ELASTIC STOP NUT M6, BRASS

(14)  232561200
ELASTIC STOP NUT M6, BRASS

(14)  232561200
ELASTIC STOP NUT M6, BRASS

(20)  291005057
CONSOLE

(21)  250000827
SCREW TORX M6 X 50

(22)  250200150
FLAT WASHER M6, STAINLESS

(23)  234062600
FLAT WASHER M6, STAINLESS

(24)  232561200
ELASTIC STOP NUT M6, BRASS

(25)  250000827
SCREW TORX M6 X 50

(25)  250000827
SCREW TORX M6 X 50

(26)  291003880
OVAL WASHER

(26)  291003880
OVAL WASHER

(27)  234062600
FLAT WASHER M6, STAINLESS

(27)  234062600
FLAT WASHER M6, STAINLESS

(28)  232561200
ELASTIC STOP NUT M6, BRASS

(28)  232561200
ELASTIC STOP NUT M6, BRASS

(30)  291004543
FRONT DECK REEF BLUE. PACKAGE TRIXX
(30)  291004580
FRONT DECK SUNBURST YELLOW. EXCEPT PACKAGE TRIXX
(30)  291004581
FRONT DECK BRIGHT WHITE. EXCEPT PACKAGE TRIXX
(30)  291004582
FRONT DECK GULFSTREAM BLUE. EXCEPT PACKAGE TRIXX
(30)  291004583
FRONT DECK KRYPTON GREEN. EXCEPT PACKAGE TRIXX
(30)  291004584
FRONT DECK RED. EXCEPT PACKAGE TRIXX

(31)  291003880
OVAL WASHER

(31)  291003880
OVAL WASHER

(31)  291003880
OVAL WASHER

(31)  291003880
OVAL WASHER

(31)  291003880
OVAL WASHER

(31)  291003880
OVAL WASHER

(31)  291003880
OVAL WASHER

(31)  291003880
OVAL WASHER

(31)  291003880
OVAL WASHER

(32)  250001138
SCREW TORX M6.81 X 30

(32)  250001138
SCREW TORX M6.81 X 30

(32)  250001138
SCREW TORX M6.81 X 30

(32)  250001138
SCREW TORX M6.81 X 30

(32)  250001138
SCREW TORX M6.81 X 30

(32)  250001138
SCREW TORX M6.81 X 30

(32)  250001138
SCREW TORX M6.81 X 30

(32)  250001138
SCREW TORX M6.81 X 30

(35)  291003793
INSERT

(35)  291003793
INSERT

(35)  291003793
INSERT

(40)  293250341
SEAL JOINT

(45)  291003880
OVAL WASHER

(45)  291003880
OVAL WASHER

(45)  291003880
OVAL WASHER

(46)  250001138
SCREW TORX M6.81 X 30

(46)  250001138
SCREW TORX M6.81 X 30

(50)  291004498
REAR DECK. PACKAGE TRIXX
(50)  291004585
REAR DECK SUNBURST YELLOW. EXCEPT PACKAGE TRIXX
(50)  291004586
REAR DECK BRIGHT WHITE. EXCEPT PACKAGE TRIXX
(50)  291004587
REAR DECK GULFSTREAM BLUE. EXCEPT PACKAGE TRIXX
(50)  291004588
REAR DECK KRYPTON GREEN. EXCEPT PACKAGE TRIXX
(50)  291004589
REAR DECK RED. EXCEPT PACKAGE TRIXX

(51)  291003880
OVAL WASHER

(51)  291003880
OVAL WASHER

(51)  291003880
OVAL WASHER

(51)  291003880
OVAL WASHER

(51)  291003880
OVAL WASHER

(51)  291003880
OVAL WASHER

(51)  291003880
OVAL WASHER

(51)  291003880
OVAL WASHER

(51)  291003880
OVAL WASHER

(51)  291003880
OVAL WASHER

(52)  250001138
SCREW TORX M6.81 X 30

(52)  250001138
SCREW TORX M6.81 X 30

(52)  250001138
SCREW TORX M6.81 X 30

(52)  250001138
SCREW TORX M6.81 X 30

(52)  250001138
SCREW TORX M6.81 X 30

(52)  250001138
SCREW TORX M6.81 X 30

(52)  250001138
SCREW TORX M6.81 X 30

(52)  250001138
SCREW TORX M6.81 X 30

(52)  250001138
SCREW TORX M6.81 X 30

(52)  250001138
SCREW TORX M6.81 X 30

(55)  291003793
INSERT. PACKAGE TRIXX

(57b)  232561200
ELASTIC STOP NUT M6, BRASS

(57a)  269500252
M6 NUT HOUSING ASS'Y

(57>57b)  269501166
NUT HOUSING ASS'Y. PACKAGE TRIXX. INCLUDES 57 TO 57B

(59)  291003793
INSERT. PACKAGE TRIXX

(60)  293250340
SEAL JOINT

(65)  291003880
OVAL WASHER

(65)  291003880
OVAL WASHER

(65)  291003880
OVAL WASHER

(65)  291003880
OVAL WASHER

(65)  291003880
OVAL WASHER

(66)  250001138
SCREW TORX M6.81 X 30. EXCEPT PACKAGE TRIXX

(66)  250001138
SCREW TORX M6.81 X 30. PACKAGE TRIXX

(66)  250001138
SCREW TORX M6.81 X 30. EXCEPT PACKAGE TRIXX

(140)  291003390
REAR ACCESS COVER

(200>200a)  291004155
FRONT ACCESS COVER. INCLUDES 200 TO 200A

(200a)  293300121
O-RING

(400)  292000933
U-CLAMP

(410)  293050001
FLAT WASHER

(450)  234082600
FLAT WASHER 8 MM, STAINLESS

(460)  232581200
HEX. ELASTIC NUT M8, BRASS

(640)  291003883
LH REAR PANEL TRIM. EXCEPT PACKAGE TRIXX

(640)  291003883
LH REAR PANEL TRIM. EXCEPT PACKAGE TRIXX

(640)  291004545
REAR SUPPORT LH. PACKAGE TRIXX

(640)  291004545
REAR SUPPORT LH. PACKAGE TRIXX

(650)  250001138
SCREW TORX M6.81 X 30

(650)  250001138
SCREW TORX M6.81 X 30

(655)  291003793
INSERT

(670)  291003884
RH REAR PANEL TRIM. EXCEPT PACKAGE TRIXX

(670)  291003884
RH REAR PANEL TRIM. EXCEPT PACKAGE TRIXX

(670)  291004546
REAR SUPPORT RH. PACKAGE TRIXX

(670)  291004546
REAR SUPPORT RH. PACKAGE TRIXX

(680)  250001138
SCREW TORX M6.81 X 30

(680)  250001138
SCREW TORX M6.81 X 30

(685)  291003793
INSERT

(840)  291003378
GLOVE BOX COVER

(860)  291004526
KNEE PADS RH. PACKAGE TRIXX
(860)  291004571
KNEE PADS RH. EXCEPT PACKAGE TRIXX

(865)  293830005
RUBBER BUMPER

(870)  705000321
OVAL WASHER

(890)  291004528
KNEE PADS LH. PACKAGE TRIXX
(890)  291004570
KNEE PADS LH. EXCEPT PACKAGE TRIXX

(895)  293830005
RUBBER BUMPER

(900)  705000321
OVAL WASHER

(950)  291004524
PANEL TRIM LH. PACKAGE TRIXX
(950)  291004576
PANEL TRIM LH. EXCEPT PACKAGE TRIXX

(952)  293150230
TUFLOK PLASTIC RIVET

(954)  211000023
HEX. SCREW 10-14 X 7/8"

(954)  211000023
HEX. SCREW 10-14 X 7/8"

(960)  291004525
PANEL TRIM RH. PACKAGE TRIXX
(960)  291004577
PANEL TRIM RH. EXCEPT PACKAGE TRIXX

(962)  293150230
TUFLOK PLASTIC RIVET

(964)  211000023
HEX. SCREW 10-14 X 7/8"

(1030)  291004567
FRONT BUMPER

(1050)  250001138
SCREW TORX M6.81 X 30

(1050)  250001138
SCREW TORX M6.81 X 30

(1050)  250001138
SCREW TORX M6.81 X 30

(1070)  291004568
REAR BUMPER LH. MODEL 2 UP

(1071)  250001138
SCREW TORX M6.81 X 30. MODEL 2 UP

(1071)  250001138
SCREW TORX M6.81 X 30. MODEL 2 UP

(1071)  250001138
SCREW TORX M6.81 X 30. MODEL 2 UP

(1071)  250001138
SCREW TORX M6.81 X 30. MODEL 2 UP

(1075)  291004569
REAR BUMPER RH. MODEL 2 UP

(1076)  250001138
SCREW TORX M6.81 X 30. MODEL 2 UP

(1076)  250001138
SCREW TORX M6.81 X 30. MODEL 2 UP

(1076)  250001138
SCREW TORX M6.81 X 30. MODEL 2 UP

(1076)  250001138
SCREW TORX M6.81 X 30. MODEL 2 UP

(1600)  295100864
STORAGE BIN KIT. PACKAGE CONVENIENCE

(1610)  295100865
FRONT DEFLECTOR KIT. PACKAGE CONVENIENCE

(1630)  269800472
LH RETAINING STRAP. PACKAGE CONVENIENCE

(1640)  269800498
RH RETAINING STRAP. PACKAGE CONVENIENCE

(1650)  250001138
SCREW TORX M6.81 X 30. PACKAGE CONVENIENCE

(1650)  250001138
SCREW TORX M6.81 X 30. PACKAGE CONVENIENCE

(1655)  250001138
SCREW TORX M6.81 X 30. PACKAGE CONVENIENCE

(1655)  250001138
SCREW TORX M6.81 X 30. PACKAGE CONVENIENCE

(1660)  293830005
RUBBER BUMPER. PACKAGE CONVENIENCE

(1660)  293830005
RUBBER BUMPER. PACKAGE CONVENIENCE

(1670)  269800541
LH HOOK. PACKAGE CONVENIENCE

(1680)  269800542
RH HOOK. PACKAGE CONVENIENCE

(1690)  269800662
RUBBER BUMPER. PACKAGE CONVENIENCE

(1690)  269800662
RUBBER BUMPER. PACKAGE CONVENIENCE

(1690)  269800662
RUBBER BUMPER. PACKAGE CONVENIENCE

(2200)  291004575
INFERIOR COVER

(2210)  250001138
SCREW TORX M6.81 X 30

(2220)  211000023
HEX. SCREW 10-14 X 7/8"

(2220)  211000023
HEX. SCREW 10-14 X 7/8"

(2270)  291004495
FRONT TRIM. PACKAGE TRIXX
(2270)  291004590
FRONT TRIM BRIGHT WHITE. EXCEPT PACKAGE TRIXX
(2270)  291004591
FRONT TRIM SUNBURST YELLOW. EXCEPT PACKAGE TRIXX
(2270)  291004592
FRONT TRIM GULFSTREAM BLUE. EXCEPT PACKAGE TRIXX
(2270)  291004593
FRONT TRIM KRYPTON GREEN. EXCEPT PACKAGE TRIXX
(2270)  291004594
FRONT TRIM RED. EXCEPT PACKAGE TRIXX

(2280)  250000829
TORX-TRUSS M/S STLSS M6 X 20

(2285b)  232561200
ELASTIC STOP NUT M6, BRASS

(2285a)  269500252
M6 NUT HOUSING ASS'Y

(2285>2285b)  269501166
NUT HOUSING ASS'Y. INCLUDES 2285 TO 2285B

(2310)  291003702
CAP

(2400)  291004539
FOOTREST ASS'Y RH. PACKAGE TRIXX

(2415)  291003880
OVAL WASHER. PACKAGE TRIXX

(2415)  291003880
OVAL WASHER. PACKAGE TRIXX

(2415)  291003880
OVAL WASHER. PACKAGE TRIXX

(2417)  250001138
SCREW TORX M6.81 X 30. PACKAGE TRIXX

(2417)  250001138
SCREW TORX M6.81 X 30. PACKAGE TRIXX

(2420)  291004540
FOOTREST ASS'Y LH. PACKAGE TRIXX

(2435)  291003880
OVAL WASHER. PACKAGE TRIXX

(2435)  291003880
OVAL WASHER. PACKAGE TRIXX

(2435)  291003880
OVAL WASHER. PACKAGE TRIXX

(2437)  250001138
SCREW TORX M6.81 X 30. PACKAGE TRIXX

(2437)  250001138
SCREW TORX M6.81 X 30. PACKAGE TRIXX

(2500)  291003440
REAR SUPPORT

(2510)  291003793
INSERT

(2520)  291003694
REAR SUPPORT MOUNT
Referencia Descripción Precio por Unidad
Incl. IVA
Cantidad
# 10

291004646

CENTER BODY
# 11

291003880

OVAL WASHER
# 12

250000708

250000827
SCREW TORX M6 X 50
# 13

234062600

FLAT WASHER M6, STAINLESS
# 14

232561200

ELASTIC STOP NUT M6, BRASS
# 20

291004493

291005057
CONSOLE
# 21

250000708

250000827
SCREW TORX M6 X 50
# 22

250200150

FLAT WASHER M6, STAINLESS
# 23

234062600

FLAT WASHER M6, STAINLESS
# 24

232561200

ELASTIC STOP NUT M6, BRASS
# 25

250000708

250000827
SCREW TORX M6 X 50
# 26

291003880

OVAL WASHER
# 27

234062600

FLAT WASHER M6, STAINLESS
# 28

232561200

ELASTIC STOP NUT M6, BRASS
# 30

291004543

FRONT DECK REEF BLUE. PACKAGE TRIXX
# 30

291004580

FRONT DECK SUNBURST YELLOW. EXCEPT PACKAGE TRIXX
# 30

291004581

FRONT DECK BRIGHT WHITE. EXCEPT PACKAGE TRIXX
# 30

291004582

FRONT DECK GULFSTREAM BLUE. EXCEPT PACKAGE TRIXX
# 30

291004583

FRONT DECK KRYPTON GREEN. EXCEPT PACKAGE TRIXX
# 30

291004584

FRONT DECK RED. EXCEPT PACKAGE TRIXX
# 31

291003880

OVAL WASHER
# 32

250000828

250001138
SCREW TORX M6.81 X 30
# 35

291003793

INSERT
# 40

293250341

SEAL JOINT
# 45

291003880

OVAL WASHER
# 46

250000828

250001138
SCREW TORX M6.81 X 30
# 50

291004498

REAR DECK. PACKAGE TRIXX
# 50

291004585

REAR DECK SUNBURST YELLOW. EXCEPT PACKAGE TRIXX
# 50

291004586

REAR DECK BRIGHT WHITE. EXCEPT PACKAGE TRIXX
# 50

291004587

REAR DECK GULFSTREAM BLUE. EXCEPT PACKAGE TRIXX
# 50

291004588

REAR DECK KRYPTON GREEN. EXCEPT PACKAGE TRIXX
# 50

291004589

REAR DECK RED. EXCEPT PACKAGE TRIXX
# 51

291003880

OVAL WASHER
# 52

250000828

250001138
SCREW TORX M6.81 X 30
# 55

291003793

INSERT. EXCEPT PACKAGE TRIXX
# 57>57b

269501166

NUT HOUSING ASS'Y. PACKAGE TRIXX. INCLUDES 57 TO 57B
# 57a

269500252

M6 NUT HOUSING ASS'Y
# 57b

232561200

ELASTIC STOP NUT M6, BRASS
# 59

291003793

INSERT. PACKAGE TRIXX
# 60

293250340

SEAL JOINT
# 65

291003880

OVAL WASHER
# 66

250000828

250001138
SCREW TORX M6.81 X 30. EXCEPT PACKAGE TRIXX
# 140

291003390

REAR ACCESS COVER
# 200>200a

291004155

FRONT ACCESS COVER. INCLUDES 200 TO 200A
# 200a

293300121

O-RING
# 400

292000933

U-CLAMP
# 410

293050001

FLAT WASHER
# 450

234082600

FLAT WASHER 8 MM, STAINLESS
# 460

232581200

HEX. ELASTIC NUT M8, BRASS
# 640

291003883

LH REAR PANEL TRIM. EXCEPT PACKAGE TRIXX
# 640

291004545

REAR SUPPORT LH. PACKAGE TRIXX
# 650

250000828

250001138
SCREW TORX M6.81 X 30
# 655

291003793

INSERT
# 670

291003884

RH REAR PANEL TRIM. EXCEPT PACKAGE TRIXX
# 670

291004546

REAR SUPPORT RH. PACKAGE TRIXX
# 680

250000828

250001138
SCREW TORX M6.81 X 30
# 685

291003793

INSERT
# 840

291003378

GLOVE BOX COVER
# 860

291004526

KNEE PADS RH. PACKAGE TRIXX
# 860

291004571

KNEE PADS RH. EXCEPT PACKAGE TRIXX
# 865

293830005

RUBBER BUMPER
# 870

705000321

OVAL WASHER
# 890

291004528

KNEE PADS LH. PACKAGE TRIXX
# 890

291004570

KNEE PADS LH. EXCEPT PACKAGE TRIXX
# 895

293830005

RUBBER BUMPER
# 900

705000321

OVAL WASHER
# 950

291004524

PANEL TRIM LH. PACKAGE TRIXX
# 950

291004576

PANEL TRIM LH. EXCEPT PACKAGE TRIXX
# 952

293150089

TUFLOK PLASTIC RIVET
Contacto
# 954

211000023

HEX. SCREW 10-14 X 7/8"
# 960

291004525

PANEL TRIM RH. PACKAGE TRIXX
# 960

291004577

PANEL TRIM RH. EXCEPT PACKAGE TRIXX
# 962

293150089

TUFLOK PLASTIC RIVET
Contacto
# 964

211000023

HEX. SCREW 10-14 X 7/8"
# 1030

291004567

FRONT BUMPER
# 1050

250000828

250001138
SCREW TORX M6.81 X 30
# 1070

291004568

REAR BUMPER LH. MODEL 2 UP
# 1071

250000828

250001138
SCREW TORX M6.81 X 30. MODEL 2 UP
# 1075

291004569

REAR BUMPER RH. MODEL 2 UP
# 1076

250000828

250001138
SCREW TORX M6.81 X 30. MODEL 2 UP

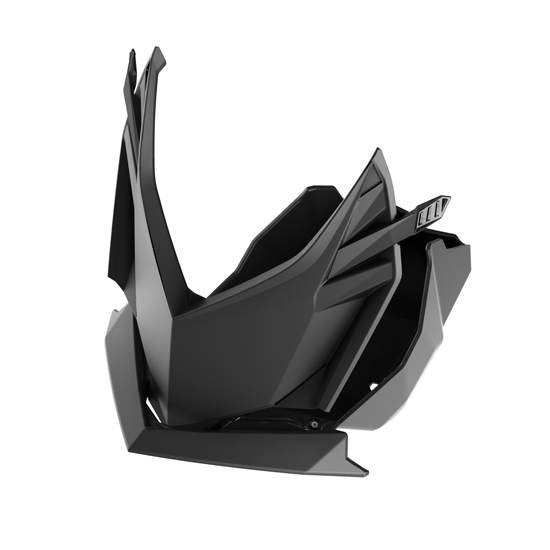

# 1600

295100504

295100864
STORAGE BIN KIT. PACKAGE CONVENIENCE

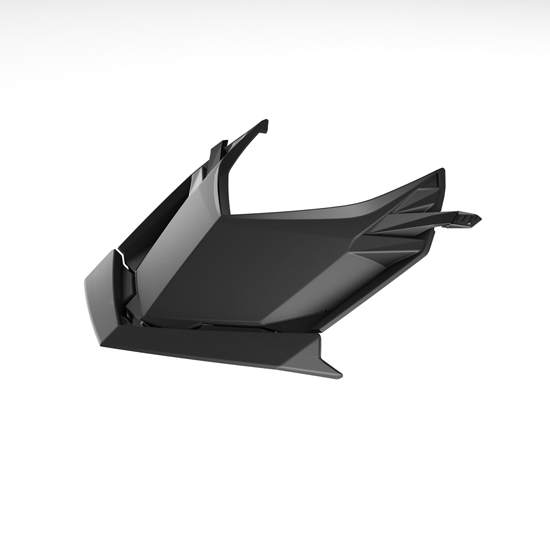

# 1610

295100553

295100865
FRONT DEFLECTOR KIT. PACKAGE CONVENIENCE
# 1630

269800472

LH RETAINING STRAP. PACKAGE CONVENIENCE
# 1640

269800498

RH RETAINING STRAP. PACKAGE CONVENIENCE
# 1650

250000828

250001138
SCREW TORX M6.81 X 30. PACKAGE CONVENIENCE
# 1655

250000828

250001138
SCREW TORX M6.81 X 30. PACKAGE CONVENIENCE
# 1660

293830005

RUBBER BUMPER. PACKAGE CONVENIENCE
# 1670

269800541

LH HOOK. PACKAGE CONVENIENCE
# 1680

269800542

RH HOOK. PACKAGE CONVENIENCE
# 1690

269800662

RUBBER BUMPER. PACKAGE CONVENIENCE
# 2200

291004575

INFERIOR COVER
# 2210

250000828

250001138
SCREW TORX M6.81 X 30
# 2220

211000023

HEX. SCREW 10-14 X 7/8"
# 2270

291004495

FRONT TRIM. PACKAGE TRIXX
# 2270

291004590

FRONT TRIM BRIGHT WHITE. EXCEPT PACKAGE TRIXX
# 2270

291004591

FRONT TRIM SUNBURST YELLOW. EXCEPT PACKAGE TRIXX
# 2270

291004592

FRONT TRIM GULFSTREAM BLUE. EXCEPT PACKAGE TRIXX
# 2270

291004593

FRONT TRIM KRYPTON GREEN. EXCEPT PACKAGE TRIXX
# 2270

291004594

FRONT TRIM RED. EXCEPT PACKAGE TRIXX
# 2280

250000829

TORX-TRUSS M/S STLSS M6 X 20
# 2285>2285b

269501166

NUT HOUSING ASS'Y. INCLUDES 2285 TO 2285B
# 2285a

269500252

M6 NUT HOUSING ASS'Y
# 2285b

232561200

ELASTIC STOP NUT M6, BRASS
# 2310

291003702

CAP
